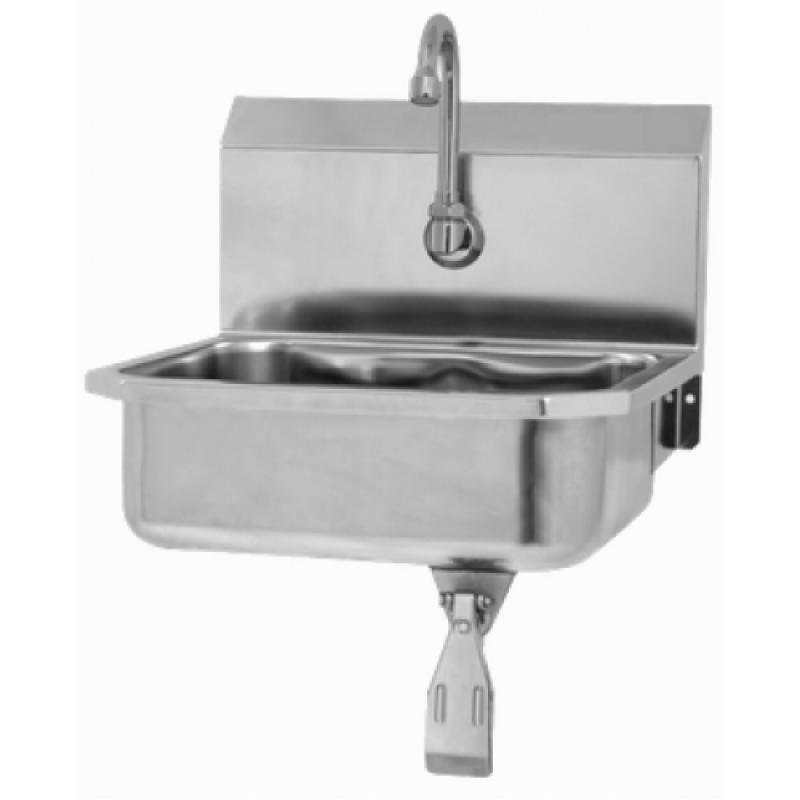

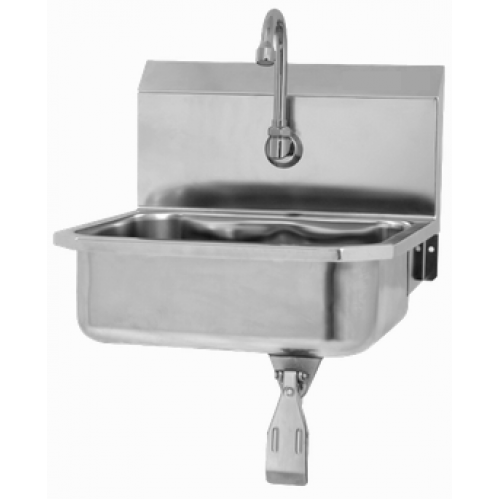

Wall Mount Sink with Single Knee Valve
- Product Code: 3018
- Availability: Pre-Order
Wall Mount Sink with Single Knee Valve
Hands-Free operation is ideal for use in food service applications. Deep drawn from heavy duty 18 gauge type 304 stainless steel with large rounded corners. Exposed surfaces are electropolished to enhance resistance to corrosion, reduce any bacterial growth and make for easier cleaning. Specially designed knee valves provide easy access to working parts without disconnecting mount or plumbing.
Includes:
(1) Wall hung sink
(1) Wall mounting bracket
(1) Single knee pedal valve (bottom mount) with 2 nuts
(1) Swivel gooseneck spout with aerator
(1) Strainer assembly with basket
(1) Connecting tubes for valve to spout connection
(2) Fittings, brass, 0.375” male compression and 0.375” male NPT
(1) Mixing check valve
Specifications:
|
Outside Dimensions |
16″ x 15-1/2″ x 13″ High |
|
Inside Bowl Size |
14″ x 11″ x 5″ Deep |
|
Back Splash height |
8″ |
|
Water Activation |
Single Knee Valve |
|
Flow Rate |
2 gpm |
|
Inlet Connections |
3/8″ Male Compression |
|
Drain Opening |
2″ |
|
Finish |
Electropolished |
|
Strainer |
1-1/2″ dia. slip-joint connection |
|
Wall Mounting Bracket |
1/4″ dia. mounting holes |
