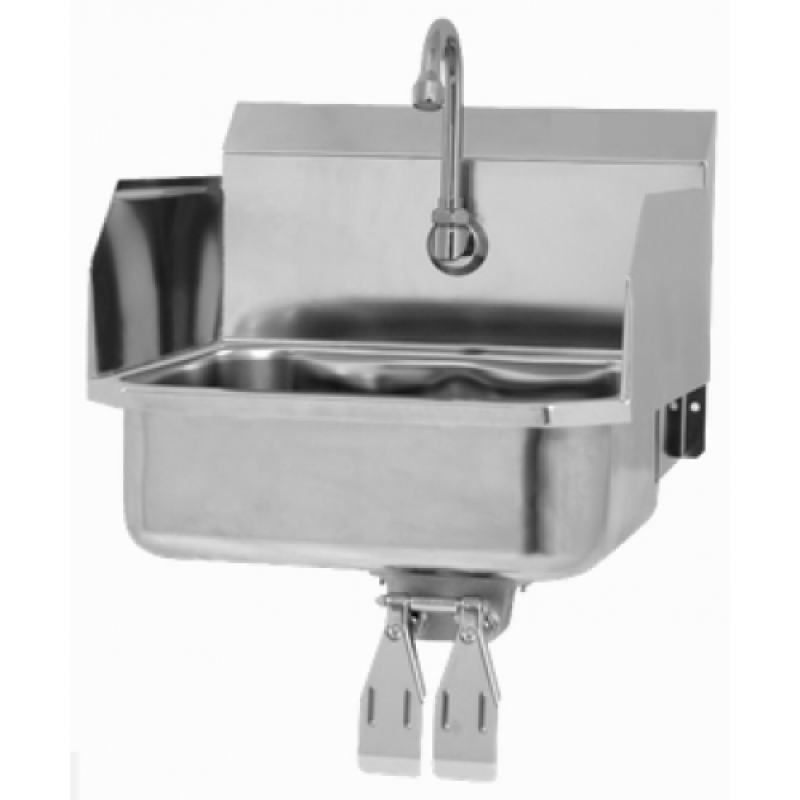

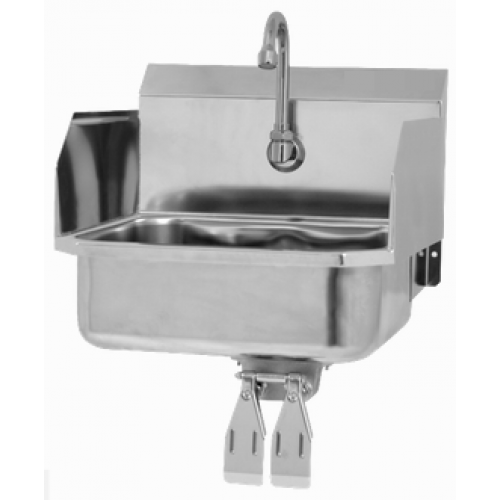

Wall Mount Sink with Double Knee Valve and Side Splashes
Hands-Free operation is ideal for use in food service applications. Deep drawn from heavy duty 18 gauge type 304 stainless steel with large rounded corners. Exposed surfaces are electropolished to enhance resistance to corrosion, reduce any bacterial growth and make for easier cleaning. Specially designed knee valves provide easy access to working parts without disconnecting mount or plumbing.
Includes:
(1) Wall hung sink
(1) Wall mounting bracket
(1) Double knee pedal valve (bottom mount) with 2 nuts
(1) Swivel gooseneck spout with aerator
(1) Strainer assembly with basket
(1) Connecting tubes for valve to spout connection
(2) Brass fittings with 0.375” male compression and 0.375” male NPT
Specifications:
|
Outside Dimensions |
16″ x 15-1/2″ x 13″ High |
|
Inside Bowl Size |
14″ x 11″ x 5″ Deep |
|
Back Splash height |
8″ |
|
Water Activation |
Double Knee Pedal Valve |
|
Flow Rate |
2 GPM |
|
Inlet Connections |
3/8″ Male Compression |
|
Drain Opening |
2″ |
|
Finish |
Electropolished |
|
Strainer |
1-1/2″ dia. slip-joint connection |
|
Wall Mounting Bracket |
1/4″ dia. mounting holes |
