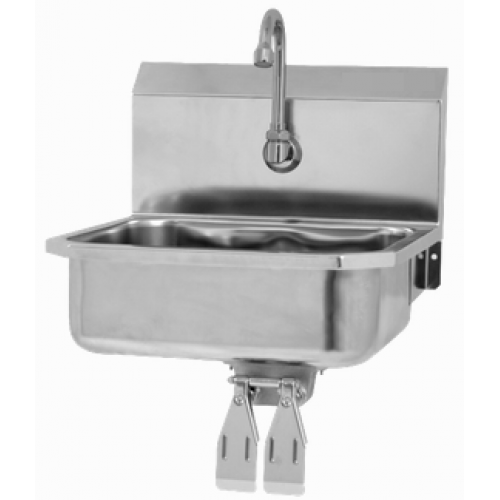

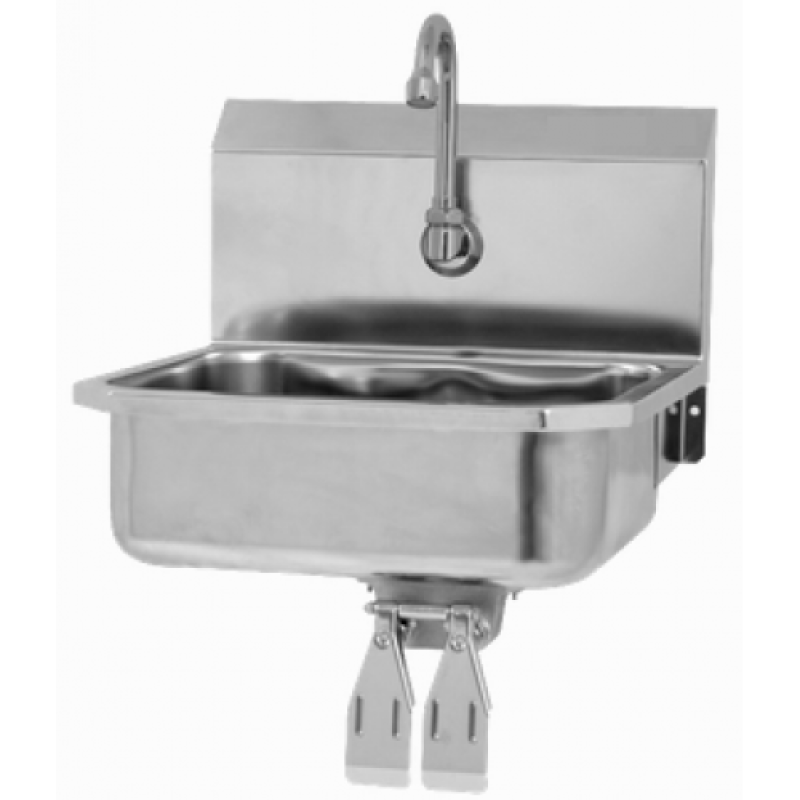

Wall Mount Sink with Double Knee Valve

Wall Mount Sink with Double Knee Valve

  • Product Code: 3029
  • Availability: Pre-Order


Wall Mount Sink with Double Knee Valve

Hands-Free operation is ideal for use in food service applications. Deep drawn from heavy duty 18 gauge type 304 stainless steel with large rounded corners. Exposed surfaces are electropolished to enhance resistance to corrosion, reduce any bacterial growth and make for easier cleaning.  Specially designed knee valves provide easy access to working parts without disconnecting mount or plumbing.

Includes:

(1) Wall hung sink
(1) Wall mounting bracket
(1) Double knee pedal valve (bottom mount) with 2 nuts
(1) Swivel gooseneck spout with aerator
(1) Strainer assembly with basket
(1) Connecting tubes for valve to spout connection
(2) Brass Fittings with 0.375” male compression and 0.375” male NPT

Specifications:

Outside Dimensions

16″ x 15-1/2″ x 13″ High

Inside Bowl Size

14″ x 11″ x 5″ Deep

Back Splash height

8″

Water Activation

Double Knee Pedal Valve

Flow Rate

2 GPM

Inlet Connections

3/8″ Male Compression

Drain Opening

2″

Finish

Electropolished

Strainer

1-1/2″ dia. slip-joint connection

Wall Mounting Bracket

1/4″ dia. mounting holes
