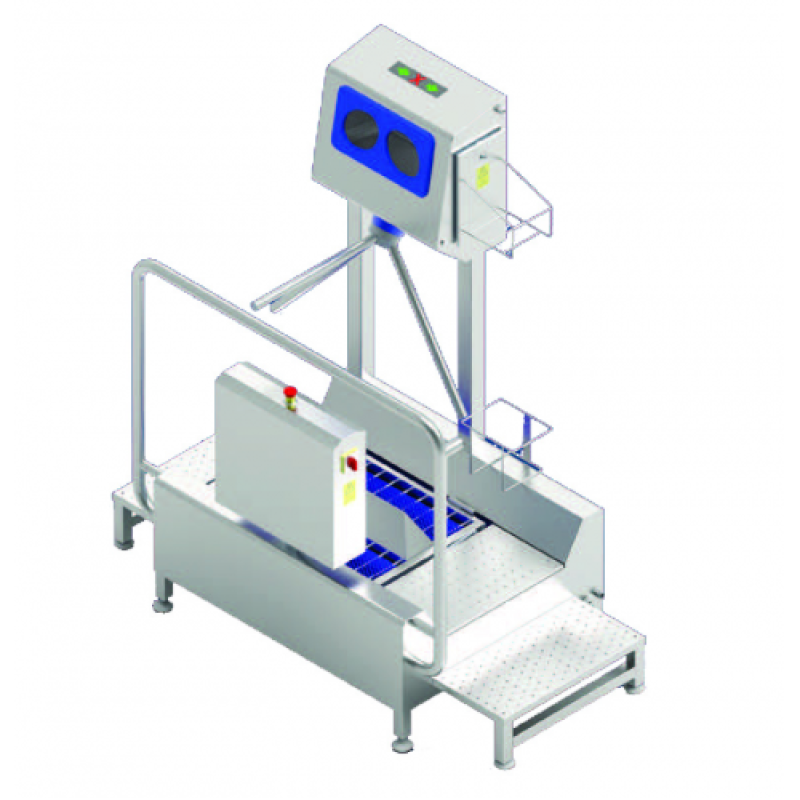

Low-Heeled Shoe Washer and Hand Disinfectant Unit with Access Control
- Product Code: 7966
- Availability: Pre-Order
Low-Heeled Shoe Washer and Hand Disinfectant Unit with Access Control
Details related to Washer Length and Brushes
- Washer made of stainless steel 1.4301.
- Two rotating brushes in length from 12 to 60 inches
- Water output: 1/2”.
- Water drainage: PVC ø 50 mm.
- Power supply: 220V 60Hz 3Ph
- Drive: 2 x 0,25 kW, IP 55.
- Automatic volume regulated washing or disinfectant liquid supply.
Details related to Hand Disinfection
- It can link the passage function with the need to perform hygienic activities.
- Making proper hand hygienic activities (disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
- Basket for 5-liter container of liquid.
- Programming the times of individual cycles and the amount of provide liquids.
- Anti-vandalism sound alarm.
- Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
- Water supply: 1/2”.
- Water drainage: PVC ø 16 mm.
- Emergency passage in case of lack of power supply.
|
Model |
Washer Length (inches) |
Brushes Length (inches) |
Washer Width (inches) |
Washer Height (inches) |
Weight (lbs) |
|
01 - Standard |
54 |
12 |
34 |
46 |
190 |
|
02 - Optional |
65 |
24 |
34 |
46 |
232 |
|
03 - Optional |
78 |
36 |
34 |
46 |
307 |
|
04 - Optional |
91 |
48 |
34 |
46 |
323 |
|
05 - Optional |
105 |
60 |
34 |
46 |
397 |
