H-Form Custom Smokehouse Cart Trolley
- Product Code: 378
- Availability: Pre-Order

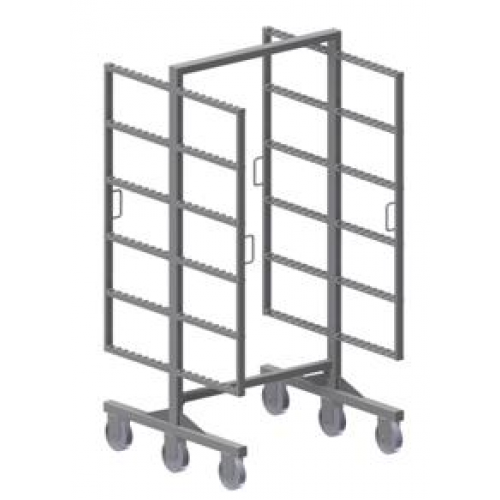

H-Form Custom Stainless Steel Smoke Cart Trolley
Features:
- Trolleys are welded cleanly.
- Lowest level is 170 mm above floor
- 2 push handles on each side to vertically offset
- Centre wheel pair elevated for a tilting moment
Technical Data:
- For Standard 1,000 mm smoke sticks and grids the trolley frame is 940 x 990 mm (WxD) I.D
- Total load max. 500 kg
- 6 polyamide 150 mm diameter fixed rollers
- Wheels work at 130°C
Standard Measurements:
|
No. of Shelves |
Smoke Stick Length |
Floor Distance |
Outside Dimension (W x D x H) |
|
5 |
1000 mm |
380 mm |
1015 x 1000 x 1950 mm |
|
6 |
1000 mm |
305 mm |
1015 x 1000 x 1950 mm |
|
7 |
1000 mm |
255 mm |
1015 x 1000 x 1950 mm |
|
8 |
1000 mm |
220 mm |
1015 x 1000 x 1950 mm |
|
9 |
1000 mm |
190 mm |
1015 x 1000 x 1950 mm |
|
10 |
1000 mm |
170 mm |
1015 x 1000 x 1950 mm |
