Finished Product Conveyor S-Type
- Product Code: 8344
- Availability: Pre-Order

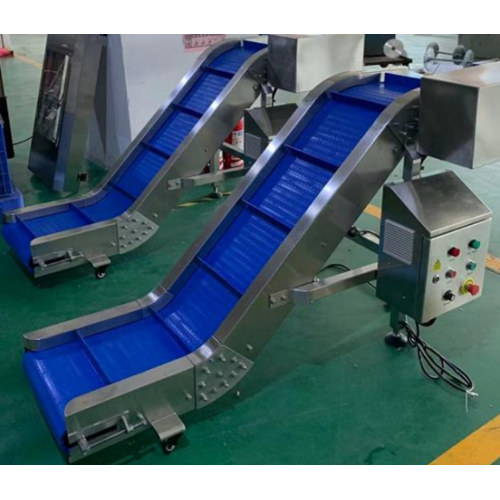

Finished Product Conveyor
Mainly used to undertake packaged products and convey them to the weight checking/metal detecting equipment or packing platform.
Main Functions and Features:
- Durable performance, low noise, and maintenance-free features.
- Different heights of baffle plates and borders as well as spacing between the baffle plates per customer’s requirement.
- Adjustable conveying speed.
- Easy maintenance, easy disassembly, and easy cleaning
Technical Parameters:
|
Contents |
Specifications |
|
Body Material |
SUS304 |
|
Conveyor Type |
Belt / chain plate |
|
Belt Material |
PVC / PP |
|
Power Supply |
220V 60Hz 1Ph or 220V 60Hz 3Ph |
|
Conveying Speed |
0-12m/min, 0-20m/min |
|
Standard Lifting height |
850 mm (33.46 inches) |
|
Baffle Spacing On Belt |
317.5 mm (12.5 inches) |
|
Conveying belt length |
1607 mm (63.26 inches) |
|
Conveying belt outer width |
436 mm (17.16 inches) |
