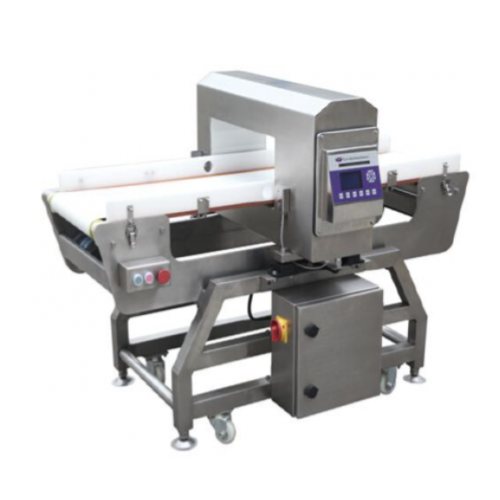

LCD Screen High Sensitivity All-Metal Detector

Commercial Food LCD Screen High Sensitivity All-Metal Detector

Scope of Application:
This is mainly used for detecting the metal chips inside any products such as poultry, seafood, ice-cream, frozen food, sugar, tea, pharmaceutical, health care products, etc.

Technical features:

1. Adopted DSP advanced technology (DSP Chip)
2. Record data 52 kinds of different products
3. Program new products and save data in system
4. Phase tracking function restricts the product effect and read high stable detection sensitivity
5. Digital lcd screen operation
6. Strong recommended for seafood, meat, salt, and other high-effect products

Technical specifications:

• Tunnel size: (above belt) based on chart A-F
• Basic sensitivity (not loaded products): Based on chart selection A-F
• Conveyor length standard 1,500mm, belt width 360mm
• Conveyor height above ground to belt standard 750mm + - foot cup 100mm with moveable wheels
• Rejection system: Audible with red light warning alarm, belt stopped automatically.
• Belt speed: 25 meters/min fixed or optional variable speed.
• Flow direction: from Right to Left (facing the operation panel) or opposite.
• Materials: white PVC belt, tunnel housing 304 grade stainless steel, conveyor 201 grade stainless steel
• Operation System and Panel Language: English
• Spare parts: calibration metal test cards 1 set
• Power supply: Voltage 220VAC, 60Hz, 1 Phase, American plug
• PKG dimension: L1780 x W1100 x H1250 mm, 2.45CBM, G.W 320KG
